Cryogenic transportation is the engineered process of storing and moving liquefied gases at ultra-low temperatures using vacuum-insulated pressure systems. It forms the backbone of global industrial gas supply chains, LNG energy distribution, medical oxygen logistics, semiconductor manufacturing, and advanced clean energy infrastructure.
Unlike conventional liquid or gas transport systems, cryogenic logistics requires specialized equipment designed to maintain temperatures as low as -253°C (hydrogen) while minimizing evaporation loss, maintaining pressure stability, and ensuring operational safety over long distances.
This guide provides a complete technical and commercial overview of cryogenic transportation systems, including semi-trailers, ISO tank containers, rail and marine systems, cylinders, and microbulk distribution networks. For a broader overview of storage solutions and industry insights, visit our resources hub.
What Is Cryogenic Transportation?
Cryogenic transportation refers to the controlled movement of liquefied gases stored below their boiling points using insulated pressure vessels designed to minimize heat transfer and maintain product stability.
Cryogenic liquids behave differently from standard liquids because small heat input causes vaporization (boil-off gas), pressure increases must be continuously managed, insulation efficiency directly affects cost performance, and safety systems are mandatory for all transport modes.
Cryogenic transportation is a key part of the industrial gas supply chain, enabling safe delivery of LNG, oxygen, nitrogen, argon, and other specialty gases. As an industrial gas supplier, we provide integrated cryogenic storage, transport, and gas solutions.
Key Cryogenic Liquids in Industrial Transport
| Gas Type | Boiling Point | Primary Use Industry |
|---|---|---|
| Liquid Nitrogen (LIN) | -196°C | Food, electronics, medical |
| Liquid Oxygen (LOX) | -183°C | Healthcare, steel, aerospace |
| Liquid Argon (LAR) | -186°C | Welding, semiconductors |
| LNG | -162°C | Energy, fuel systems |
| Liquid CO2 | -20°C to -50°C | Food, beverages, dry ice |
| Liquid Hydrogen | -253°C | Clean energy, aerospace |
Cryogenic Transportation System Architecture
Modern cryogenic logistics is built on four integrated layers:
- Production & liquefaction at industrial plants
- Cryogenic Storage systems including bulk tanks and microbulk systems
- Transportation systems including road, rail, and marine vessels
- End-use distribution to hospitals, factories, and energy systems
Methods of Cryogenic Transportation

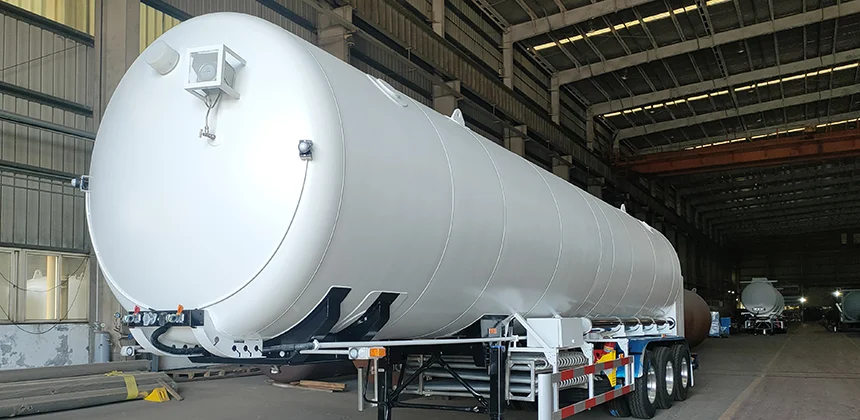

Cryogenic Semi-Trailers (Road Transport Backbone)
Cryogenic semi-trailers are vacuum-insulated mobile pressure vessels mounted on trailer chassis. They are the most widely used method for domestic industrial gas distribution and LNG logistics.
Key features include a double-wall vacuum-insulated structure, stainless steel inner vessel, pressure building system, boil-off gas control system, and road-compliant chassis design.
Applications include industrial gas distribution (LIN, LOX, LAR), LNG refueling networks, and medical oxygen supply chains.
Typical capacity ranges from 10 m³ to 80 m³.
Cryogenic ISO Tank Containers
Cryogenic ISO tank containers are designed for intermodal transportation using ships, railways, and trucks. These containers follow international ISO dimensions, making them suitable for global logistics.
Advantages include international shipping compatibility, containerized logistics efficiency, and reduced handling risk.
| Cryogenic Liquid | ISO Tank Sizes | Typical Capacity (Liters) | Notes |
|---|---|---|---|
| LNG (Liquefied Natural Gas) | 20 ft / 40 ft / 40 ft High-Cube | 20,000 – 26,000 / 20,000 – 26,000 / 26,000 – 27,000 | High-cube tanks allow higher capacity while maintaining ISO compliance; insulation required to maintain -162°C |
| Liquid Nitrogen (LN2) | 20 ft / 40 ft / 40 ft High-Cube | 21,000 – 25,000 / 21,000 – 25,000 / 25,000 – 26,500 | Widely used for industrial and medical applications; high-cube allows slightly higher volume |
| Liquid Oxygen (LOX) | 20 ft / 40 ft / 40 ft High-Cube | 20,000 – 24,000 / 20,000 – 24,000 / 24,000 – 25,500 | High purity tanks; high-cube maximizes bulk shipment volume |
| Liquid Argon (LAr) | 20 ft / 40 ft / 40 ft High-Cube | 20,000 – 24,000 / 20,000 – 24,000 / 24,000 – 25,000 | Used in welding, electronics, and scientific applications; high-cube improves shipping efficiency |
| Liquid Helium (LHe) | 20 ft / 40 ft / 40 ft High-Cube | 20,000 – 23,000 / 20,000 – 23,000 / 23,000 – 24,000 | Extremely low boiling point (-269°C); high-cube used for large-scale transport |
Cryogenic Semi-Trailers vs Cryogenic ISO Tank Containers
Cryogenic semi-trailers and ISO tank containers are both used for transporting liquefied gases, but they are designed for different transportation methods, logistics systems, and operational needs. Understanding their differences helps determine the most efficient solution for industrial gas and LNG transportation.
| Feature | Cryogenic Semi-Trailer | Cryogenic ISO Tank Container |
|---|---|---|
| Primary Transport Method | Road transportation | Intermodal transport (road, rail, sea) |
| Typical Capacity | 10m³ – 80m³ | 10ft to 40ft ISO sizes |
| Best Application | Regional and domestic distribution | International shipping and export logistics |
| Mobility | High flexibility for direct delivery | Containerized global transport system |
| Transportation Efficiency | Efficient for local bulk delivery | Efficient for multimodal logistics |
| Loading & Unloading | Fast unloading at customer sites | Requires container handling systems |
| Common Products | LIN, LOX, LAR, LNG, LCO2 | LNG, industrial gases, specialty chemicals |
| International Shipping | Limited | Excellent for global transportation |
| Operating Cost | Lower for short-distance delivery | More efficient for export logistics |
| Typical Industries | Industrial gas supply, LNG stations, healthcare | Global LNG trade, marine transport, chemical logistics |
Cryogenic semi-trailers are ideal for domestic road transportation and LNG delivery, while cryogenic ISO tank containers are better suited for international and multimodal logistics operations.
Cryogenic Rail Tank Systems
Rail transportation is used for large-volume industrial gas distribution over long distances, offering lower per-ton transport cost and high payload capacity.
Marine Cryogenic Transport
Marine cryogenic transportation is essential for global LNG trade using LNG carrier vessels equipped with advanced insulation and boil-off gas recovery systems.
Cryogenic Transport Solutions for LNG & Industrial Gases
We supply cryogenic semi-trailers, ISO tank containers, microbulk systems, and vacuum insulated transport tanks for LNG and industrial gas applications worldwide.
- ASME, CE & ISO compliant
- Custom capacities and pressures
- Global export support
- Engineering consultation available
Cryogenic Cylinders
Cryogenic cylinders are small vacuum insulated vessels used in laboratories, hospitals, food processing, and electronics applications.
Microbulk Cryogenic Systems
Microbulk systems provide on-site gas storage for medium-demand users, improving supply stability and reducing cylinder handling.
Cryogenic Transportation Equipment Engineering
Inner Vessel System
Stainless steel construction designed for cryogenic toughness and pressure resistance.
Vacuum Insulation System
Most LNG semi-trailers operate with vacuum levels between 10⁻³ and 10⁻⁵ torr using perlite or multilayer insulation (MLI). Lower vacuum degradation directly increases boil-off rate (BOR), operating pressure rise, and transportation loss during long-distance delivery.
Pressure Control System
Includes pressure building coil, vaporization control, and automatic regulation during discharge.
Safety System
Includes relief valves, burst disks, emergency shutoff systems, and pressure monitoring sensors.
Cryogenic Transportation Standards and Certifications
Cryogenic transportation equipment must follow international safety and pressure vessel standards to ensure safe operation, reliable performance, and legal transportation across global markets.
These standards cover important areas such as tank design, welding quality, vacuum insulation performance, transportation safety, and international shipping compliance for LNG and industrial gas transport systems.
| Certification | Primary Purpose | Typical Application |
|---|---|---|
| ASME | Pressure vessel design and fabrication standards | Cryogenic tanks and LNG transport vessels |
| ADR | European hazardous goods road transport regulations | Cryogenic semi-trailers and road tankers |
| DOT | U.S. transportation safety regulations | Cryogenic transport systems in the United States |
| EN 13530 | European cryogenic vessel standards | Vacuum insulated cryogenic equipment |
| ISO 21009 | Vacuum insulated vessel requirements | Industrial gas storage and transportation systems |
| TPED | European transportable pressure equipment certification | Cryogenic cylinders and transport tanks |
| IMDG | Marine transport regulations for dangerous goods | Cryogenic ISO tanks and LNG marine transport |
| CSC Certification | International container safety approval | ISO tank containers for global shipping |
Why Certifications Matter
Certifications are required for safe design, legal transport, and export approval.
They also reduce risk during LNG and industrial gas logistics.
Main Requirements by Transport Mode
- ADR / DOT → road transport
- IMDG / CSC → marine transport
- ASME / EN 13530 → pressure vessels
- TPED → European pressure equipment
Why Material Selection Matters
Cryogenic liquids can make normal materials brittle at very low temperatures.
Choosing the right materials helps keep the tank strong, stable, and safe during LNG and industrial gas transportation.
Common Material Configurations
- 304 stainless steel inner vessel with carbon steel outer shell
- 316L stainless steel for high-purity gas applications
- Nickel steel for LNG low-temperature service
- Aluminum alloys for lightweight cryogenic components
Typical Operating Pressure and Boil-Off Rate (BOR)
Cryogenic transportation systems operate under controlled pressure and temperature to reduce evaporation loss and keep the liquid stable during transport.
Key factors like working pressure, maximum allowable working pressure (MAWP), holding time, and boil-off rate all affect safety, efficiency, and operating cost.
| Engineering Parameter | Typical Range | Engineering Importance |
|---|---|---|
| Working Pressure | 0.2 – 1.6 MPa | Maintains stable liquid transfer and discharge |
| MAWP | 1.6 – 3.5 MPa | Defines maximum safe operating pressure |
| Static Evaporation Rate | 0.2% – 0.6% per day | Indicates insulation efficiency and boil-off performance |
| Holding Time | 5 – 60 days | Measures storage duration before pressure rise |
| Design Temperature | -196°C to -253°C | Determines cryogenic material suitability |
What Is Boil-Off Rate (BOR)?
Boil-off rate (BOR) refers to the percentage of cryogenic liquid that evaporates due to heat entering the tank during storage or transportation. Lower BOR indicates better insulation performance and reduced product loss.
Factors Affecting BOR
- Vacuum insulation quality
- Ambient temperature conditions
- Transportation distance and duration
- Tank size and insulation structure
- Frequency of loading and unloading operations
Modern cryogenic transportation systems use high vacuum insulation, multilayer insulation (MLI), and pressure control systems to reduce boil-off gas, improve holding time, and maintain stable operating pressure during LNG and industrial gas transportation.
Industrial Applications of Cryogenic Transportation
- Energy sector: LNG distribution networks and fuel systems
- Healthcare: liquid oxygen hospital supply systems
- Manufacturing: steel production and welding gases
- Electronics: semiconductor production gases
- Aerospace: rocket propellants and testing systems
- Food industry: cryogenic freezing and cold chain preservation
Key Engineering Challenges
- Boil-off gas due to heat ingress
- Thermal efficiency loss from insulation degradation
- Pressure management during transport
- Complex international regulations
Future Trends in Cryogenic Transportation (2026+)
- Hydrogen economy expansion and liquid hydrogen transport
- Smart cryogenic logistics with IoT monitoring systems
- Lightweight materials for improved efficiency
- Near-zero boil-off insulation systems
- Integrated global energy logistics networks
How to Choose the Right Cryogenic Transportation System
- Identify gas type and purity requirements
- Select transport mode: road, rail, or marine
- Determine capacity needs based on consumption
- Evaluate insulation performance and boil-off rate
- Ensure compliance with international standards
Manufacturer Evaluation Criteria
- Vacuum insulation technology capability
- International certifications (ASME, CE, ISO)
- Engineering customization ability
- LNG and industrial gas experience
- After-sales technical support
- Global export compliance
TECHNICAL FAQs
About Cryogenic Transportation
Cryogenic liquids are transported using vacuum insulated systems such as semi-trailers, ISO tanks, rail tankers, and LNG carriers. These systems reduce heat transfer, control pressure, and minimize evaporation loss during transport.
Cryogenic semi-trailers are mainly used for regional road transport with high capacity, while ISO tank containers are designed for international multimodal transport including ship, rail, and truck logistics.
Boil-off gas is caused by heat entering the cryogenic tank, which vaporizes a small portion of the liquid. It is controlled using vacuum insulation systems and pressure regulation mechanisms.
Cryogenic transportation is widely used in LNG energy, healthcare oxygen supply, semiconductor manufacturing, metallurgy, food processing, and aerospace industries.
Cryogenic liquids can be stored for several days to weeks depending on insulation quality, vacuum level, and ambient temperature conditions. High-quality tanks significantly reduce evaporation loss.
Cryogenic transport tanks include pressure relief valves, burst discs, vacuum monitoring systems, emergency shutoff systems, and thermal protection systems to ensure safe operation.
Related Cryogenic Transportation
More Technical Information about Cryogenic Transport
What is a Cryogenic Semi-Trailer?
Overview of cryogenic transport systems and tank types.
What is a Cryogenic ISO Tank?
Guide to ISO tank standards, design, and applications.
Types of Ambient Air Vaporizers
Technical details on vaporization methods for cryogenic liquids.
Cryogenic Liquid Storage Vessels
Engineering principles and tank design for safe cryogenic storage.
Designing of Cryogenic Storage Vessels
Technical guidance on structural and design considerations.
Cryogenic Tank Corrosion Prevention
Maintenance and durability strategies for long-lasting tanks.
Conclusion
Cryogenic transportation is a critical global infrastructure system enabling the safe and efficient movement of liquefied industrial gases and LNG. It integrates advanced vacuum insulation technology, pressure control systems, and specialized transportation equipment to ensure stable, efficient, and safe delivery across industries worldwide.
As demand for LNG, hydrogen energy, industrial gases, and clean energy systems continues to grow, cryogenic transportation will remain a core pillar of global industrial logistics and energy supply chains.
