Ethylene oxide (EtO) sterilization is a low-temperature sterilization method widely used for medical devices and other products that may be damaged by high temperatures, moisture, or certain radiation processes. Its ability to penetrate packaging, narrow passages, and complex product geometries makes it an important sterilization technology for many heat- and moisture-sensitive products.
EtO sterilization is more than simply exposing a product to ethylene oxide gas. A validated process normally involves controlled preconditioning, humidity, gas exposure, evacuation, aeration, and appropriate monitoring or residual evaluation. For medical devices, the sterilization process must be developed, validated, and routinely controlled according to applicable requirements.
This technical guide explains how ethylene oxide sterilization works, the major stages of an EtO cycle, critical process parameters, medical-device applications, packaging considerations, residual EtO, safety, validation, and important international standards.
EtO sterilization parameters are not universal. EtO concentration, temperature, relative humidity, exposure time, load configuration, packaging, and other conditions must be established and validated for the specific product and sterilization process.
What Is Ethylene Oxide (EtO) Sterilization?
Ethylene oxide, commonly abbreviated as EtO or EO, is a reactive chemical gas used as a sterilizing agent. Because the gas can penetrate certain packaging materials, porous structures, narrow passages, and complex device geometries, EtO can be used for products that are difficult to sterilize using conventional high-temperature methods.
EtO sterilization is particularly important for medical devices that may not tolerate the temperatures or moisture associated with steam sterilization. The relatively low-temperature nature of the process can help reduce thermal stress on compatible materials while providing effective microbial inactivation when the process is properly developed and validated.
A complete EtO sterilization process normally includes more than the exposure phase. The overall cycle may include preconditioning, humidification, EtO injection, exposure, gas removal, air washes, aeration, and product release activities.
How Does EtO Sterilization Work?
Ethylene oxide sterilization relies on the chemical reactivity of EtO with biological molecules. When the gas reaches microorganisms under appropriate process conditions, it can react with important cellular components and interfere with biological functions required for microbial survival and reproduction.
The effectiveness of EtO sterilization depends on the interaction of multiple process variables. EtO concentration alone does not determine whether a cycle will be effective. Temperature, relative humidity, exposure time, product configuration, packaging, gas penetration, and load conditions can all influence sterilization performance.
This is why a sterilization cycle should not be selected simply from a generic table of EtO concentration and exposure time. A production process needs to be developed and validated for the specific product, packaging configuration, equipment, and intended use.
EtO Sterilization Mechanism in Simple Terms
- EtO is introduced into the sterilization chamber.
- The gas penetrates the applicable packaging and product configuration.
- Controlled humidity helps establish suitable conditions for microbial inactivation.
- EtO interacts chemically with microorganisms.
- The validated combination of process conditions produces the intended level of microbial inactivation.
- After exposure, EtO is removed and the product undergoes controlled aeration.
EtO Sterilization Process
A typical EtO sterilization cycle consists of several controlled stages. The exact sequence and operating conditions vary according to the sterilization equipment, product, packaging, load configuration, validated cycle, and applicable regulatory requirements.
1. Preconditioning
Products may first undergo controlled temperature and humidity conditioning before entering the sterilization exposure phase. Preconditioning helps bring the product and load to the conditions required by the validated process.
Product temperature and moisture content can influence EtO penetration and microbial susceptibility. Therefore, preconditioning can be an important part of process consistency.
2. Humidification
Relative humidity is an important variable in many EtO sterilization processes. Moisture can influence the susceptibility of microorganisms to EtO and can therefore affect sterilization performance.
The required humidity range is process-specific. Insufficient or excessive humidity can affect the relationship between the sterilant and the product or microorganisms.
3. EtO Gas Introduction
Once the chamber reaches the required process conditions, ethylene oxide is introduced into the sterilization chamber.
Gas distribution and penetration are important considerations. The sterilant must reach the relevant surfaces and locations within the product load. Product geometry, packaging, internal channels, load density, and chamber configuration can all influence gas penetration.
4. Exposure
During the exposure phase, products remain under controlled EtO conditions for a defined period.
The effectiveness of exposure depends on the combination of process variables rather than exposure time alone. Important variables can include EtO concentration, temperature, relative humidity, exposure time, pressure conditions, product configuration, and load arrangement.
A longer exposure time does not automatically compensate for unsuitable humidity, temperature, gas distribution, or product loading. The complete process must be validated as a system.
5. EtO Removal and Air Washes
After the exposure phase, the chamber is evacuated and may undergo controlled air washes or other gas-removal steps.
The purpose is to remove EtO from the chamber and begin reducing the amount of sterilant associated with the product.
6. Aeration
Aeration is a critical part of many EtO sterilization processes. Following exposure, some products and materials can retain or absorb ethylene oxide.
Controlled aeration provides time and appropriate conditions for residual EtO and related substances to decrease before product release.
Aeration requirements depend on product materials, packaging, product geometry, temperature, load configuration, and the validated process.
7. Residual Testing and Product Release
For applicable medical devices, residual ethylene oxide and ethylene chlorohydrin (ECH) may need to be evaluated before product release.
ISO 10993-7 addresses allowable limits, measurement procedures, and conformity assessment for residual EO and ECH in applicable EO-sterilized medical devices.
Critical Parameters of EtO Sterilization
EtO sterilization is a multi-variable process. Four commonly discussed process variables are EtO concentration, temperature, relative humidity, and exposure time. However, product configuration, packaging, load density, chamber performance, and gas distribution can also be critical to the validated process.
EtO Concentration
EtO concentration determines the amount of sterilant present during the exposure phase. The required concentration depends on the validated cycle and should be considered together with temperature, humidity, exposure time, and product characteristics.
A higher EtO concentration should not automatically be interpreted as a more effective sterilization process. The objective is to achieve the required sterilization performance under a validated set of conditions.
Temperature
Temperature affects reaction rates, gas behavior, material properties, and microbial susceptibility. One of the main advantages of EtO is that it can be used at substantially lower temperatures than steam sterilization.
The appropriate temperature range is product- and process-specific and must be established during process development and validation.
Relative Humidity
Humidity can influence microbial susceptibility to EtO. Controlled moisture conditions are therefore an important part of many EtO sterilization processes.
Humidity should be controlled according to the validated process rather than treated as an uncontrolled environmental condition.
Exposure Time
Exposure time determines how long the product remains under the defined sterilization conditions. It must be considered together with EtO concentration, temperature, humidity, product characteristics, and load configuration.
Product and Load Configuration
Changes in the product or load can affect sterilization performance. Important factors may include:
- Product geometry
- Internal channels and cavities
- Packaging configuration
- Number of products per load
- Load density
- Product orientation
- Material characteristics
- Chamber loading pattern
A change in product, packaging, equipment, or loading configuration may therefore require an appropriate change evaluation under the applicable quality and validation procedures.
Why Is EtO Used for Medical Device Sterilization?
EtO is particularly useful when a product cannot tolerate the high temperatures or moisture associated with steam sterilization. Its gas-phase nature also allows the sterilant to reach certain difficult-to-access areas when the product and packaging are appropriately designed.
Common applications can include:
- Catheters and medical tubing
- Syringes and disposable medical devices
- Surgical instruments
- Plastic and polymer-based components
- Complex medical-device assemblies
- Devices with narrow internal passages
- Selected diagnostic and healthcare products
- Compatible medical packaging configurations
EtO is not automatically the best sterilization method for every product. Selection should consider materials, product design, packaging, required sterilization performance, production requirements, regulatory expectations, and compatibility with other sterilization technologies.
EtO Sterilization and Packaging
Packaging is an important part of EtO sterilization because the sterilant must reach the product while the packaging maintains the required sterile-barrier properties after processing.
Packaging materials and configurations may need to be evaluated for:
- EtO penetration
- Gas permeability
- Moisture interaction
- Material compatibility
- Aeration characteristics
- Sterile-barrier performance
- Product protection during handling and distribution
A packaging change can alter the way EtO reaches the product or how quickly residual EtO dissipates. For this reason, packaging changes should be evaluated within the applicable sterilization validation and change-control framework.
Ethylene Oxide Residuals
Residual ethylene oxide is an important consideration for applicable medical devices sterilized using EtO.
Some materials can absorb or retain EtO after the exposure phase. In addition to residual EO, ethylene chlorohydrin (ECH) can be relevant to residual assessment depending on the product and process.
Residual control is closely related to:
- Product materials
- Product geometry
- EtO exposure conditions
- Packaging
- Temperature
- Aeration conditions
- Aeration time
ISO 10993-7:2026 specifies allowable limits for residual ethylene oxide and ethylene chlorohydrin in applicable EO-sterilized medical devices, together with procedures for measurement and conformity assessment.
ISO 10993-7:2026 is the third edition of the standard and was published in April 2026. It addresses residual EO and ECH, measurement procedures, conformity assessment, and product-release considerations.
EtO Sterilization Safety
Ethylene oxide requires careful engineering and operational controls. It is a reactive and flammable gas, and occupational exposure can present significant health risks.
Facilities using EtO therefore need appropriate systems for gas storage, gas delivery, ventilation, leak detection, exposure control, chamber operation, aeration, emergency response, and personnel training.
Important Safety Considerations
- Controlled EtO storage and handling
- Suitable gas delivery equipment
- Leak detection and monitoring
- Appropriate ventilation
- Worker exposure control
- Controlled sterilization chamber operation
- Safe gas evacuation
- Controlled aeration
- Emergency response procedures
- Personnel training and operating procedures
The exact safety requirements depend on the facility, jurisdiction, equipment design, process, gas supply system, and applicable regulations. EtO safety should therefore be considered as part of the overall sterilization-system design.
EtO Sterilization Validation
A theoretical EtO cycle and a validated sterilization process are not the same thing.
For medical devices, the sterilization process must demonstrate that it can consistently achieve the intended sterilization performance under defined conditions. ISO 11135 provides requirements for the development, validation, and routine control of EtO sterilization processes for medical devices.
Validation activities may consider:
- Product characteristics
- Packaging configuration
- Load configuration
- Equipment performance
- Process parameters
- Microbiological performance
- Process challenge conditions
- Routine monitoring requirements
- Product release procedures
Changes to the product, packaging, sterilization equipment, facility, or process may require an evaluation to determine whether the existing validated state remains applicable.
EtO Sterilization Standards
Several international standards and technical documents are relevant to ethylene oxide sterilization. The applicable requirements depend on the product, market, facility, and regulatory framework.
ISO 11135
ISO 11135:2014, Sterilization of health-care products — Ethylene oxide — Requirements for the development, validation and routine control of a sterilization process for medical devices, specifies requirements for the development, validation, and routine control of EtO sterilization processes for medical devices.
ISO 11135:2014 remains the current published edition. ISO states that it was last reviewed and confirmed in 2024. An amendment, ISO 11135:2014/Amd 1:2018, also applies. A third edition, ISO/FDIS 11135, is currently under development and has reached the formal approval stage.
ISO 10993-7
ISO 10993-7:2026, Biological evaluation of medical devices — Part 7: Ethylene oxide sterilization residuals, addresses allowable limits for residual ethylene oxide and ethylene chlorohydrin, measurement procedures, and conformity assessment for applicable EO-sterilized medical devices.
AAMI Technical Documents
Additional AAMI technical documents provide guidance on specific aspects of EtO sterilization, including contract sterilization, physical aspects, microbiological considerations, material compatibility, and product adoption or process equivalence.
Relevant documents recognized by the U.S. FDA include AAMI TIR14, TIR15, TIR16, TIR17, TIR28, and other related guidance documents.
| Standard / Document | Main Topic |
|---|---|
| ISO 11135:2014 | Development, validation and routine control of EtO sterilization processes |
| ISO 10993-7:2026 | Residual ethylene oxide and ethylene chlorohydrin |
| AAMI TIR14 | Contract sterilization using ethylene oxide |
| AAMI TIR15 | Physical aspects of EtO sterilization |
| AAMI TIR16 | Microbiological aspects of EtO sterilization |
| AAMI TIR17 | Material compatibility during sterilization |
| AAMI TIR28 | Product adoption and process equivalence |
EtO Sterilization vs. Other Sterilization Methods
No single sterilization technology is appropriate for every product. The choice depends on material compatibility, product geometry, packaging, required sterilization performance, production requirements, and regulatory considerations.
| Method | Typical Characteristic | Main Advantage | Main Consideration |
|---|---|---|---|
| EtO | Low-temperature chemical sterilization | Penetration and compatibility with many heat-sensitive products | Aeration, residual control and gas safety |
| Steam | High-temperature, moisture-based | Established and efficient | Not suitable for all heat-sensitive products |
| Gamma | Ionizing radiation | High penetration and industrial scalability | Radiation and material compatibility considerations |
| Electron Beam | Ionizing radiation | Rapid processing | Penetration depends on product density and geometry |
| Vaporized Hydrogen Peroxide | Low-temperature chemical process | Useful for selected low-temperature applications | Material and process compatibility limitations |

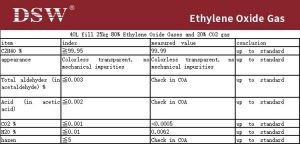

EtO Gas Supply for Sterilization
A reliable sterilization process also requires a controlled source of sterilant. Depending on the facility and process design, ethylene oxide may be supplied in different gas packaging and delivery configurations.
Gas-supply considerations may include:
- Ethylene oxide gas composition
- Gas cylinder or container configuration
- Gas quantity
- Valve and connection requirements
- Gas delivery system
- Storage conditions
- Transportation requirements
- Facility safety systems
The selected gas formulation and supply configuration should be compatible with the sterilization equipment and the validated process.
For information about ethylene oxide gas supply and related gas products, see our
Ethylene Oxide Gas
resources.
Common Challenges in EtO Sterilization
Inadequate Humidity
Insufficient or poorly controlled humidity can affect microbial susceptibility and process consistency.
Poor Gas Penetration
Complex product geometries, dense loads, unsuitable packaging, or restricted internal passages can affect EtO penetration.
Excessive Load Density
Changes in load density or loading configuration can influence gas distribution and exposure conditions.
Inadequate Aeration
Insufficient aeration can result in residual EtO levels that do not meet the applicable product-release requirements.
Material Compatibility
Different materials can absorb, retain, or react with EtO differently. Material compatibility should therefore be evaluated as part of process development.
Uncontrolled Process Changes
Changes to products, packaging, equipment, load configuration, or facility conditions can affect the validated sterilization process and may require appropriate evaluation.
TECHNICAL FAQs
FAQs About EtO Sterilization
Ethylene oxide (EtO) sterilization is a low-temperature sterilization method that uses ethylene oxide gas to inactivate microorganisms on medical devices and other products that may be sensitive to heat or moisture.
EtO sterilization typically involves preconditioning, humidification, ethylene oxide gas introduction, exposure, gas removal, air washes, and aeration. The cycle is developed and validated for the specific product, packaging, load configuration, and sterilization equipment.
Important EtO sterilization parameters include ethylene oxide concentration, temperature, relative humidity, exposure time, gas penetration, product configuration, packaging, and load characteristics. Appropriate parameters must be established and validated for the specific sterilization process.
EtO sterilization is useful for many medical devices that cannot tolerate the temperatures or moisture associated with some other sterilization methods. The gas can penetrate certain porous materials, packaging, and complex device geometries when the process is properly designed and validated.
Ethylene oxide residuals are remaining amounts of ethylene oxide and related substances in or on a sterilized product after processing. Residual levels must be evaluated according to applicable requirements and the intended use of the medical device.
ISO 11135 is a key international standard for the development, validation, and routine control of ethylene oxide sterilization processes for medical devices. The applicable edition and regulatory requirements should be confirmed for the target market.
ISO 10993-7 addresses allowable limits for residual ethylene oxide and ethylene chlorohydrin, along with related measurement and conformity assessment requirements for applicable medical devices.
No. The suitability of EtO sterilization depends on the device materials, design, packaging, load configuration, intended use, and compatibility with the sterilization process. Each process should be appropriately evaluated and validated.
Conclusion
Ethylene oxide sterilization is a technically complex process that combines controlled gas exposure, temperature, humidity, product configuration, packaging, aeration, and routine process control.
Its major advantages include low-temperature operation, gas-phase penetration, and compatibility with many products that cannot tolerate conventional high-temperature sterilization. These characteristics make EtO an important technology for selected medical devices and other compatible products.
However, effective EtO sterilization cannot be defined by a single EtO concentration or exposure time. The complete process must be developed and validated for the specific product and sterilization system, with appropriate consideration of microbial performance, material compatibility, packaging, residual EtO, safety, and applicable standards.
For medical-device applications, ISO 11135 provides the principal framework for development, validation, and routine control of EtO sterilization processes, while ISO 10993-7:2026 addresses applicable residual EO and ECH requirements.
This article is provided for technical and educational purposes. Specific sterilization cycles, gas concentrations, exposure conditions, residual limits, and safety procedures should be established according to the applicable standards, regulatory requirements, validated process, product characteristics, and qualified engineering procedures.
