Argon Gases Manufacturer & Supplier
Having the advantage of being cost-effective in China, the DSW industry provides argon gases, both in liquid and argon, to the world.
As one of the leading argon gas suppliers, we also offer a full range of choices for cylinder sizes, tank sizes, cryogenic types, and purity grades – including bulk argon delivery.
Argon Gas Specifications
| PRODUCT NAME | PURITY | ||
| Argon(Ar) | > 99.999% | ||
| Liquid argon ( LAR) | > 99.999% | ||
| Argon with a mixture of gas | |||
| Main Gas | Balance gas | Valve | |
| Argon Gas | Helium: 1ppm-50% | CGA 580 | |
| Argon Gas | Hydrogen: 1ppm-50% | CGA 350 | |
| Argon Gas | Nitrogen: 1ppm-50% | CGA 580 | |
Liquid phase argon can be delivered to large or small cryogenic vessels.
Pre-filled liquid cylinders are also options.
For larger-scale liquid argon applications, onsite argon production can be cost-effective.
Liquid argon and argon gas in various delivery or packaging are optional, allowing you to address any argon application at any scale or at any purity grade.

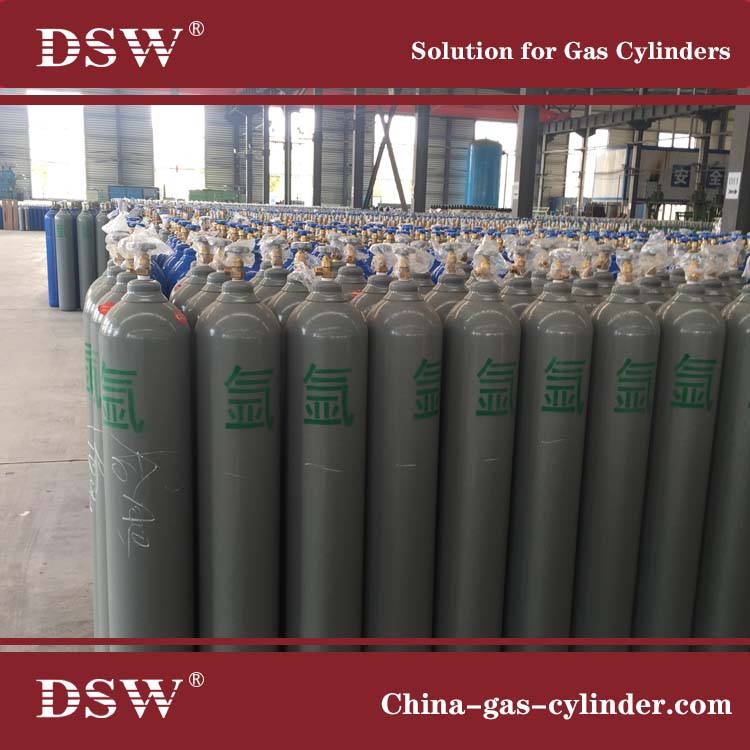

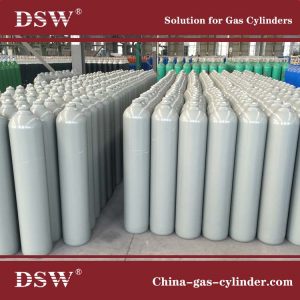

Gas phase argon is used in various cylinders of various sizes and purities.
Argon Gases in Cylinders of All Sizes. Mixtures are available for special applications such as plasma cutters, arc welding, and laser support.
Argon for laboratories up to 99.9999% pure. Cylinders | Portables | Dewar
Argon for electronics and semiconductors up to 99.9999% pure.
Argon for industrial use, including multi-packs.
Two-component gas mixtures (argon in balance gas).
Sizes of argon cylinder |
|||
| Size | 40L-150 Bar | 50L-150 Bar | 50L-200 Bar |
| Volume | 6M3 | 7.5M3 | 10M3 |
| Outside Diameter | 219MM | 232MM | 232MM |
| Height | 1333MM | 1420MM | 1420MM |
| Weight | 47.8KG | 52KG | 52KG |
| Working pressure | 150BAR | 150BAR | 200BAR |
| Test pressure | 250BAR | 250BAR | 300BAR |
| Material | 37Mn | 37Mn | 34CrMo4 |
| Wall thickness | 5.7MM | 5.7MM | 5.7MM |
| Standard | ISO9809-3 | ISO9809-3 | ISO9809-1 |
