Founded in 2006, BluNet specializes in the design, production, and manufacture of high-quality LPG gas compressors, including solutions for LNG station BOG recovery and petroleum-associated gas recovery.

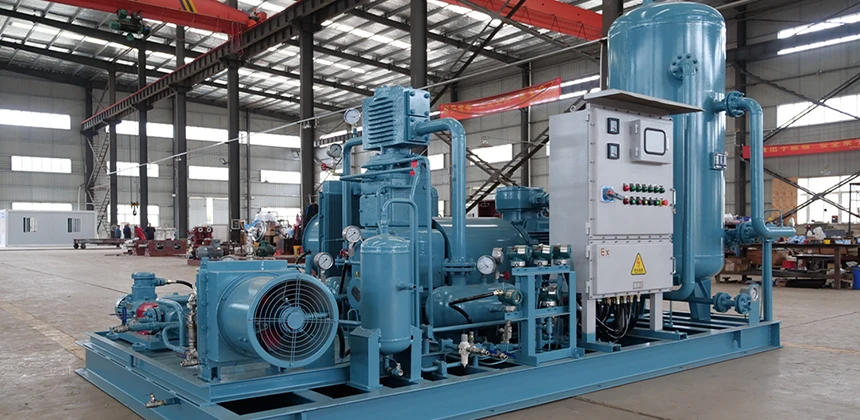

The High Pressure Vertical LPG Gas Compressor is a premium industrial solution for efficient liquefied petroleum gas (LPG) handling. Designed for LPG, ammonia, and similar liquefied gases, this compressor ensures reliable pressurization, unloading, and gas recovery for factories, terminals, and chemical plants worldwide.
Customisable according to operational conditions, it delivers consistent performance for industrial, commercial, and municipal gas systems.
Technical Specifications
| Feature | Specification |
|---|---|
| Processing Support | Yes |
| Compressed Medium | LPG or similar liquefied gas |
| Admission Pressure | 1.2 MPa |
| Discharge Pressure | 1.8 MPa |
| Flow Rate | 2.0 m³/min |
| Working Temperature | 120°C |
| Cooling Method | Air cooling |
| Control System | PLC |
| Dimensions | 4500 × 2200 × 1400 mm |
| Lubrication System | Forced lubrication |
| Motor Power | 220 KW |
| Availability | Global |
Features
- High-pressure vertical design for compact and robust construction.
- Customisable parameters for flow, pressure, and medium type.
- Handles LPG, ammonia, and similar liquefied gases.
- Integrated PLC control system for automated and safe operation.
- Air-cooling system ensures efficient heat management.
- Durable forced lubrication system for extended operational life.
- Globally available with international shipping and support.

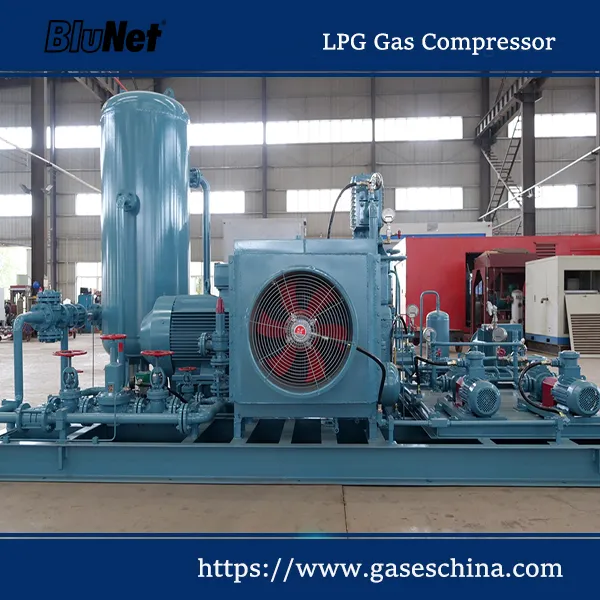

Advantages
- Reliable and stable operation under high-pressure conditions.
- High efficiency for LPG unloading, pressurization, and gas recovery.
- Safety-focused design for industrial and commercial gas handling.
- Cost-effective, reducing gas loss and improving operational efficiency.
- Versatile applications across chemical, industrial, and municipal sectors.
Applications
- Loading and unloading of LPG tank trucks and tank ships.
- Bottling operations for LPG stations and refilling plants.
- Pressurization of LPG mixing stations.
- Recovery of LPG and liquid residues for resource efficiency.
- Gas pressurization and recovery in chemical enterprises.
