Microbulk Nitrogen Tanks

Microbulk Nitrogen – Vacuum-Insulated LIN Vessel

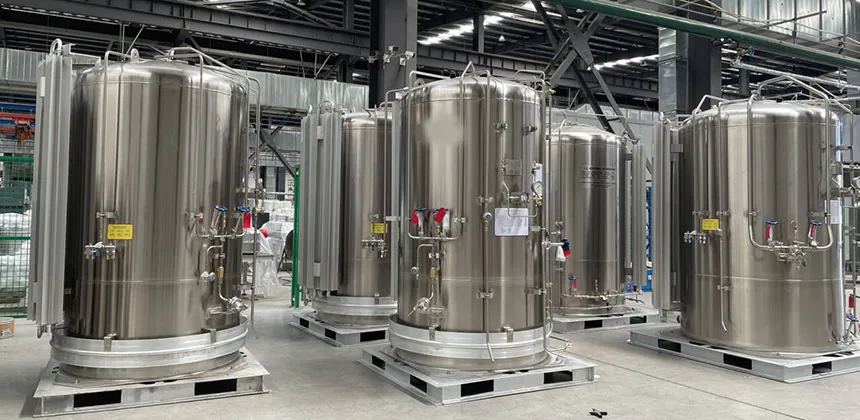

BluNet designs microbulk nitrogen tanks that are safe, reliable, and easy to use. They offer excellent insulation, a stable nitrogen supply, and a compact, space-saving design.
These tanks are available in 1000 L capacity with operating pressures of 1.6, 2.6, or 3.4 MPa.
They are ideal for storing and transporting liquid nitrogen and include options such as microbulk tanks, cryogenic storage tanks, and movable cryogenic tanks.
BluNet mini nitrogen tanks deliver a reliable nitrogen supply and industrial-grade performance in a compact, space-saving design—without requiring large bulk systems.

Tags,
Categories
FacebookXPinterestRedditDeliciousWhatsapp

Microbulk Liquid Nitrogen Tank – 1 m³ Cryogenic LIN Storage System
BluNet is a professional manufacturer specializing in microbulk nitrogen tanks. With years of experience in cryogenic storage solutions, BluNet delivers high-quality, reliable, and efficient mini nitrogen tanks for industrial, medical, and research applications.
Microbulk nitrogen tanks are compact cryogenic storage systems designed for the efficient storage and supply of micro bulk liquid nitrogen. Positioned between traditional liquid nitrogen dewars and large bulk tanks, these systems provide higher capacity, improved thermal efficiency, and reduced handling requirements.

BluNet microbulk nitrogen tank for industrial and medical applications

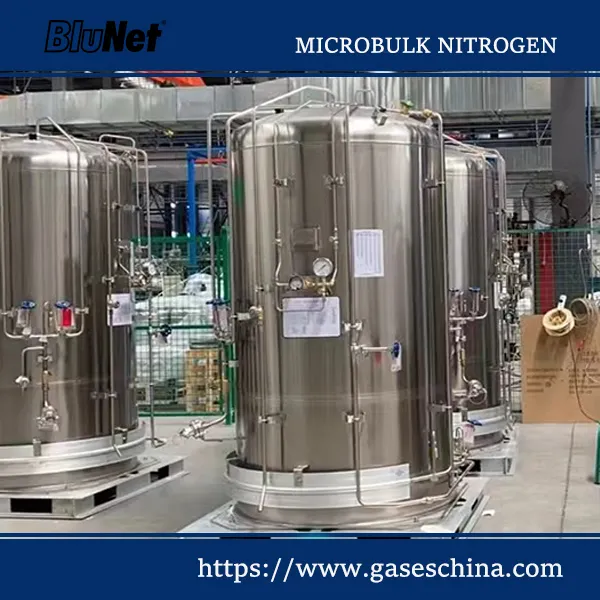

BluNet microbulk nitrogen tanks – compact, reliable, and efficient cryogenic storage solutions

Mini Nitrogen Tank Specifications

Model: CDLS-1/1.6

Insulation type: Multi-layer
NO Items Inner vessel Outer vessel
1 Design pressure MPa 1.68 -0.1 (outer)
2 Working pressure MPa 1.6 -0.1 (outer)
3 MAWP MPa 1.68 /
4 Design temperature ºC -196 -19 ~ 50
5 Working temperature ºC ≥ -196 Normal
6 Strength pressure MPa 2.7 HLD
7 Geometric volume m³ 1.06 0.88 (interlayer)
8 Effective volume m³ 1.0 /
9 Medium LIN (Liquid Nitrogen) Multi-layer insulation
10 Main material S30408 S30408
11 Surface treatment Pickling and passivation Sanding (Sa2.5) and coating
12 Corrosion allowance mm 0 0
13 Joint efficiency 1.0 0.85
14 Filling rate 95% /
15 Static evaporation % / day LN₂ ≤ 1.0
16 Seal-off vacuum degree Pa ≤ 0.01
17 Interlayer seal leakage ≤ 1 × 10⁻⁸
18 Diameter mm Φ900 Φ1104
19 External dimensions mm Φ1104 × 2444
20 Type Vertical
21 Tare weight kg ~986
22 Fully loaded weight (LIN) kg ~1754
23 Design service life 15 years
24 Safety valve set pressure 1.68 MPa
25 Medium max density kg/m³ 808 (LIN)
26 Thickness of coating µm /
27 Ex-work pressure of inner vessel 0.03 MPa
28 Design code GB

Product Features

  • Microbulk Storage Design: Engineered for liquid nitrogen storage with significantly greater capacity than standard dewars.
  • High-Performance Insulation: Vacuum-insulated construction minimizes heat ingress and reduces nitrogen loss.
  • Stable Nitrogen Supply: Supports continuous liquid or gaseous nitrogen withdrawal with consistent pressure control.
  • Compact Footprint: Requires less installation space than conventional bulk tanks while supporting scheduled microbulk refilling.
  • Safety-Oriented Construction: Manufactured using cryogenic-grade materials and equipped with pressure relief devices, level indicators, and control valves.

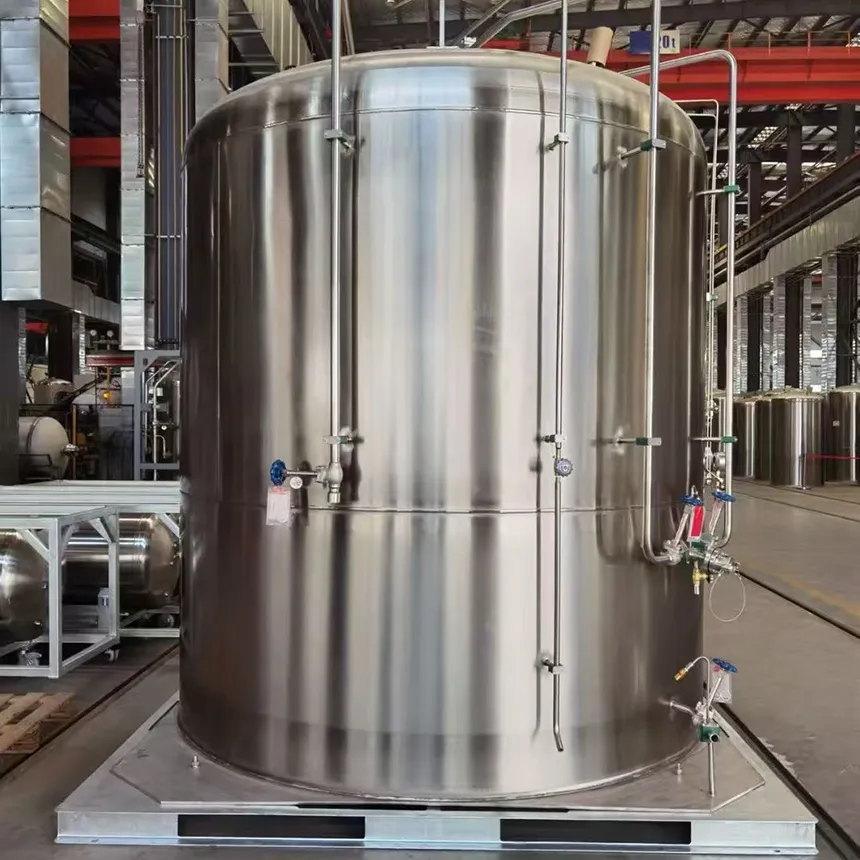

Microbulk nitrogen tank with high-performance insulation and compact design
BluNet Microbulk Nitrogen Tank – Efficient, Safe, and Space-Saving Cryogenic Storage

Typical Applications

Our microbulk nitrogen tanks are widely used across multiple industries:

  • Manufacturing & Metal Processing – inerting, purging, and cooling processes
  • Medical & Healthcare – cryopreservation and laboratory nitrogen supply
  • Electronics & Semiconductors – controlled atmosphere environments
  • Food & Beverage – freezing, chilling, and modified atmosphere packaging
  • Research Laboratories – experimental work and sample storage
