Microbulk Tank: Bulk System Solution for liquid gas
BluNet deeply understands customers’ evolving needs and draws on decades of cryogenic expertise to offer an innovative MicroBulk system.
Micro Bulk provides on-site storage and filling to maximize operational safety efficiency and minimize product loss. Features include sizes up to 7500 litres, multiple working pressure options, and universal fill capability from any cryogenic delivery truck. These provide users with an ideal MicroBulk Solution with requirements of 450 and 7500 litres of usage volume.
Micro Bulk Tank Sizes

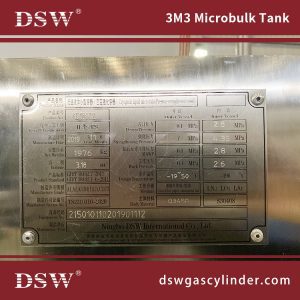

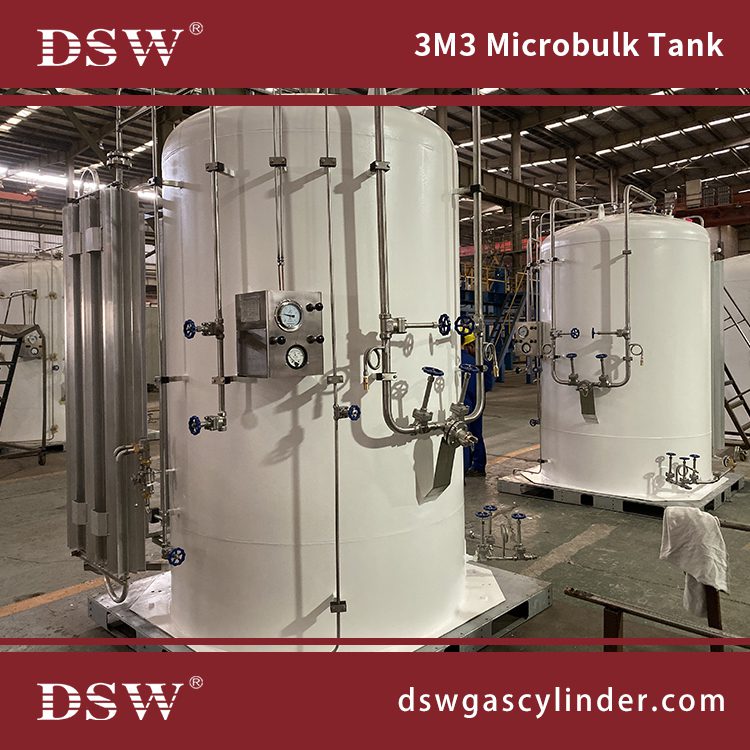

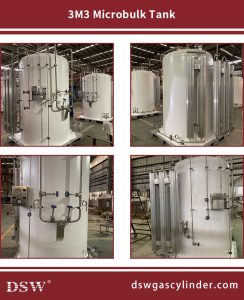

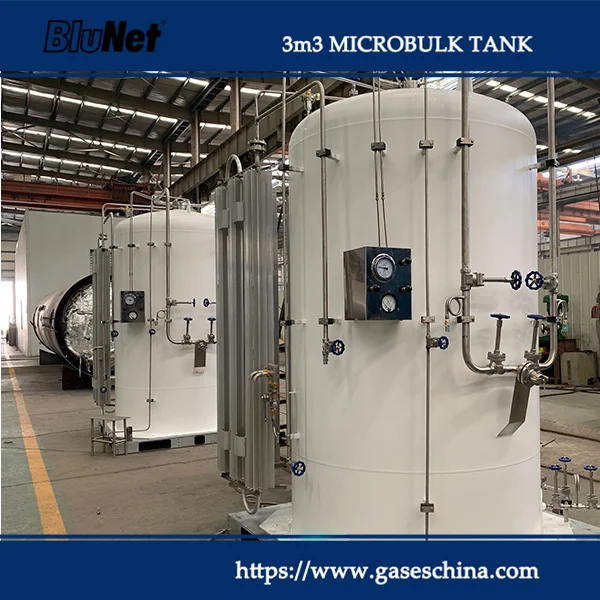

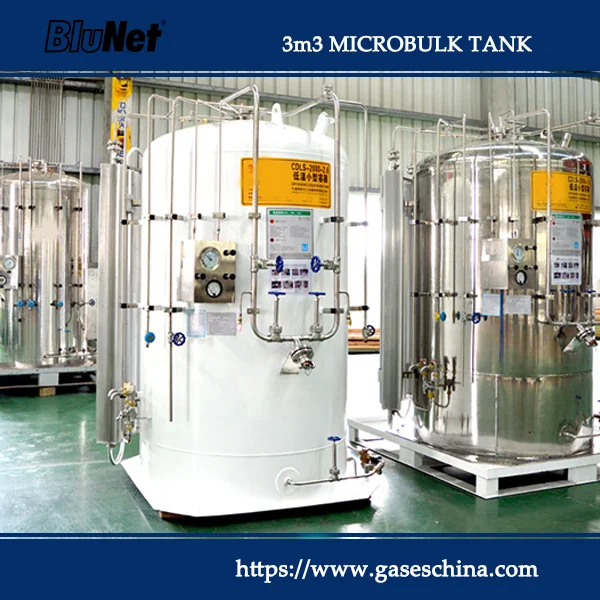

| Model:CDLS-3/3.4 Insulation type: Multi-layer 3M3 Microbulk Tank | |||
| NO | Items | Inner vessel | Outer vessel |
| 1 | Design pressure MPa | 3.5 | -0.1(outer) |
| 2 | Working pressure MPa | 3.4 | -0.1(outer) |
| 3 | MAWP MPa | 3.5 | / |
| 4 | Design temperature ºC | -196 | -19~50 |
| 5 | Working temperature ºC | ≥-196 | normal |
| 6 | Strength pressure MPa | 5.4 | HLD |
| 7 | G. Vol m3 | 3.18 | 1.83(interlayer) |
| 8 | E. Vol m3 | 3 | / |
| 9 | Medium | LIN/LOX/LAR | Multi-layer |
| 10 | Main material | S30408 | S30408 |
| 11 | Treatment | Pickling and passivation | Sanding (Sa2.5) and coating |
| 12 | Corrosion allowance mm | 0 | 0 |
| 13 | Joint efficiency | 1 | 0.85 |
| 14 | Filling rate | 95% | / |
| 15 | Static evaporation %/d | LN2≤0.6; LO2≤0.4; LAR≤0.42 | |
| 16 | Seal off vacuum degree Pa | ≤0.01 | |
| 17 | Interlayer seal leakage | ≤2×10-7 | |
| 18 | Diameter mm | Φ1400 | Φ1604 |
| 19 | External Dimensions mm | Φ1604×2945 | |
| 20 | Type | Vertical | |
| 21 | Tare weight: Kg | ~2146 | |
| 22 | Fully loading weight Kg | 6376(LAR); | |
| 23 | Design service life | 15years | |
| 24 | Open pressure for safety valve | 3.45Mpa | |
| 25 | Medium max density kg/m3 | 1410(LAR) | |
| 26 | Thickness of coat, um | / | |
| 27 | Ex-work pressure of inner | 0.03Mpa | |
| 28 | Design code | GB | |
Features of Micro bulk Tank
Quality Materials: Durable Stainless Steel, Super-Insulated Digital Gauges
Automatic Fill Shut-off: Functions Seamlessly with Variable Delivery Truck Models
Direct Supply: Microbulk tanks provide liquid nitrogen directly via insulated pipelines, reducing handling.
Reliable: Built to Last: 3-Year Vacuum Warranty.
Benefits of Mini Bulk Tank:
- Reduced Downtime: Continuous supply minimizes the need to swap cylinders or pause operations for refills.
- Cost Efficiency: Bulk deliveries lower the cost per litre than smaller cylinders.
- Improved Safety: Eliminates risks associated with frequent handling of individual cylinders.
- Environmental Friendliness: Reduces waste from packaging and transport of small compressed cylinders.
- Precision Supply: Provides a steady, regulated flow of nitrogen and argon suited for sensitive applications.
Common Applications:
Micro-bulk systems are widely used across various industries, including:
- Food and Beverage: For flash freezing, packaging, and storage.
- Healthcare: In cryopreservation, laboratories, and cryotherapy.
- Electronics and Manufacturing: For cooling processes and inert environments.
- Research and Development: In cryogenics and scientific experiments.
