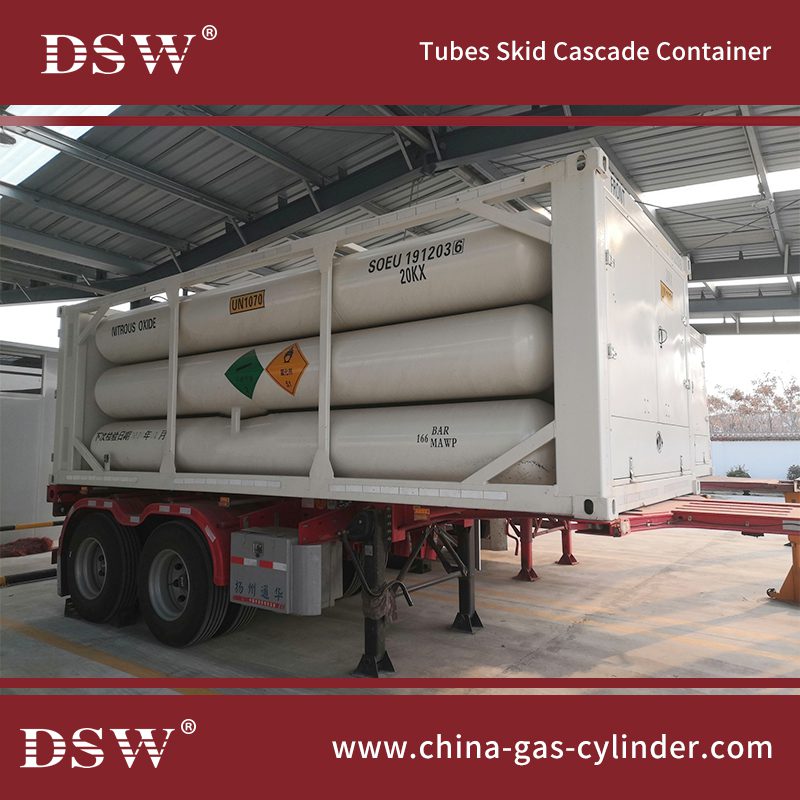

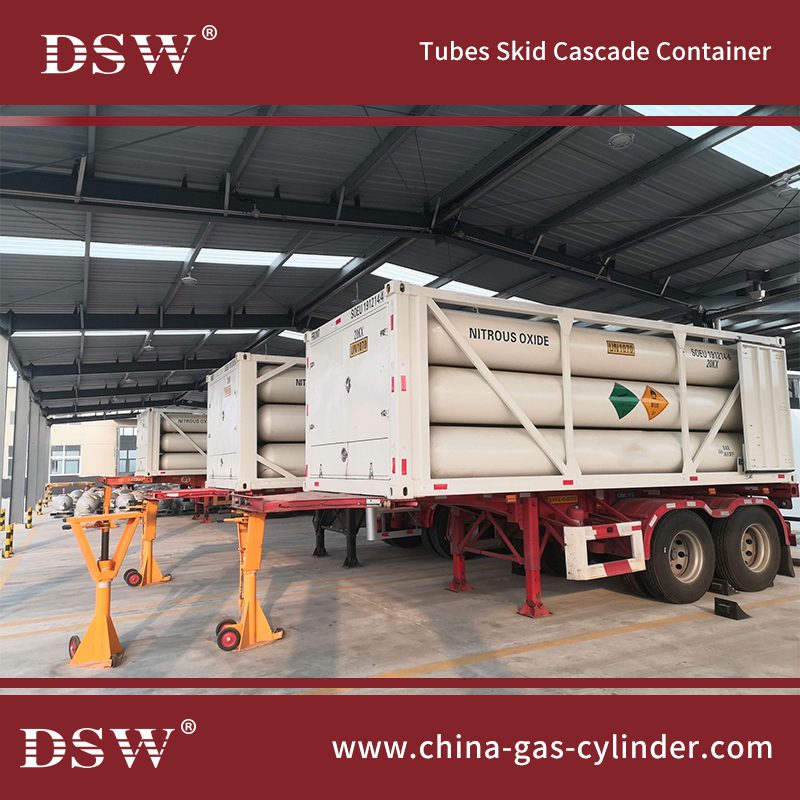

Tubes Skid Cascade Container
20FT 40FT High Purity N2o Gas Pipe Bundle Container
N2O purity ≥99.9995%
| Nominal Operating Pressure(MPa) | 20 |
| Working Temperature(ºC) | -40~60 |
| Single Cylinder Volume(m3) | 1.065 |
| Cylinder Quantity(piece) | 8 |
| Total Water Volume(m3) | 8.52 |
| Filling Medium | N2O |
| Container Weight(kg) | 12650 |
| Rated Weight(kg) | 12906 |
| Service Life(years) | 20 |
| Cylinder Material | 4130X |
| Leakage Test Pressure(MPa) | 20 |
| Hydrostatic Test Pressure(MPa) | 33.4 |
| Cylinder Size:OD×Thickness×Length(mm) | Φ559×16.8×5490 |
| Container Size:Length×Width×height(mm) | 6058×2438×1435 |
| Gas Inlet & Outlet | DN 5/8″ |
| Safety Relief Devices | Burst Disk |
| Pressure Gauge | YTN-100H |
| Vavles | ROTAREX |
| Delivery time: | 20ft 30th Aug 2018 |
| 40ft 30th Sep 2018 |
Tubes Skid Cascade Container for LO2/LN2/LAR/LCO2/LNG/LN2O
Nitrous oxide may be used as an aerosol propellant in various fields:
– for whipped cream (because it improves the foaming characteristics of the cream), syrups, concentrates of coffee, chocolate and various flavors, sauces for grilled meats, vinaigrette, etc.
– pharmaceutical field
– cosmetics (perfumes, eau de cologne, hair spray, etc.)
– household products, paints and varnishes, insecticides
– aerosols for use at low temperature, such as de-icers, engine starting boosters, etc.
The concept of having all the containers the same size, with mechanically stable frames around them, common connections, and methods for locking them securely in place – means cranes and other material handling devices are built to quickly connect to the tank and securely move it from vehicle to vehicle.
