Vertical or Horizontal Double-Wall Vacuum Insulated Tanks for Cryogenic Liquids
BluNet cryogenic liquid storage tanks are engineered for the safe storage and handling of liquefied industrial gases, including
liquid oxygen (LO₂), liquid nitrogen (LN₂), liquid argon (LAr), carbon dioxide (CO₂), and other cryogenic media.
Available in vertical and horizontal configurations, these tanks are designed for long-term on-site storage with minimal thermal loss.
High-Performance Insulation & Efficient Design
BluNet tanks utilise perlite insulation or advanced multi-layer vacuum insulation, delivering excellent thermal performance,
extended holding times, and reduced evaporation losses.
- Low life-cycle and operating costs
- Reduced product loss
- Lightweight construction for easier transport and installation
The primary function of the cryogenic liquid storage tank is to
store and dispense ultra-low temperature liquids safely and reliably.
Cryogenic Storage Tank Design
A cryogenic storage tank features a double-wall construction designed to minimise heat transfer:
Tank Structure
- Inner Tank: Stainless Steel 304L (X5CrNi18-10), designed according to EN 13458
- Outer Tank: Carbon Steel, designed according to EN 13458
The annular space between the inner and outer vessels is evacuated and filled with
perlite and super-insulation, ensuring stable cryogenic performance and minimal thermal loss.
[/caption]
Cryogenic Storage Solution
Complete range of bulk cryogenic storage tanks and solutions delivering proven reliability, reduced maintenance, and lowest cost of ownership for the full spectrum of liquefied gases.
Trailers, semi-trailers, swap bodies, liquid tube trailers, and railcars for safe and efficient distribution of non-flammable and flammable liquid gases.
Liquid Storage Vertical Tanks: The tanks are manufactured as per the requirement of international standards.
Liquid Storage Horizontal Tanks: Our horizontal tanks are simple tube & shell structures.
Complete Cryogenic Storage Solutions
BluNet provides a complete range of bulk cryogenic storage tanks and integrated solutions,
offering proven reliability, reduced maintenance requirements, and a low total cost of ownership.
Cryogenic Transport & Distribution
- Cryogenic trailers and semi-trailers
- Swap bodies
- Liquid tube trailers
- Railcars
These systems ensure the safe and efficient distribution of both
flammable and non-flammable liquefied gases.
Vertical & Horizontal Cryogenic Liquid Tanks
Vertical Cryogenic Storage Tanks
Manufactured in compliance with international standards, vertical tanks are ideal for facilities with limited ground space
and high storage capacity requirements.

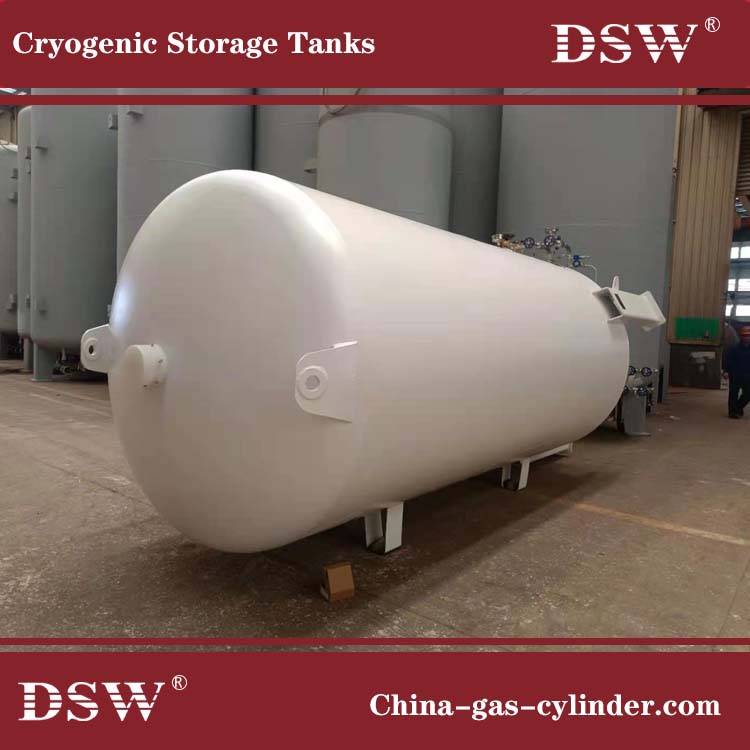

Horizontal Cryogenic Storage Tanks
Designed with a simple and robust tube-and-shell structure, horizontal tanks offer flexible installation
and are well suited for transport and modular applications.
Global Applications
BluNet cryogenic liquid storage tanks—particularly LN₂ and LAr tanks—are widely used across global markets,
including India, Pakistan, Vietnam, Indonesia, Brazil, Russia, Mexico, the United States, Turkey, and Germany.
