BluNet designs and engineers high-performance LNG cryogenic tanks for safe and efficient storage of liquefied natural gas (LNG). Our LNG storage tanks are built to ensure minimal boil-off gas, maximum reliability, and compliance with international standards, making them ideal for industrial and small-scale applications.

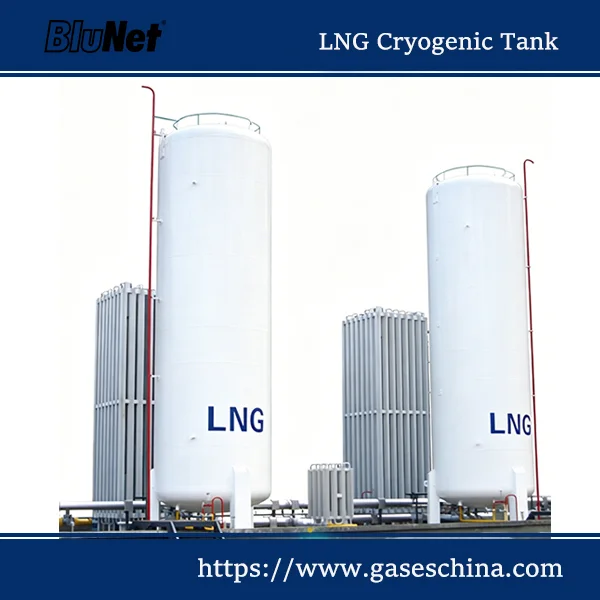

Key Features
- Advanced Insulation: Vacuum or perlite insulation keeps LNG at −162°C, reducing boil-off gas.
- Durable Construction: Inner tank made of 9% nickel steel or stainless steel; outer tank in carbon steel or reinforced concrete.
- Flexible Design: Vertical, horizontal, modular, or skid-mounted tanks for optimized installation.
- Safety Systems: Pressure relief valves, sensors, and monitoring in full compliance with NFPA 59A, API 625, and ISO 16903.
- Capacity Options: Small-scale tanks (<10,000 L) for fueling stations and pilot plants, large tanks for industrial terminals.
Applications
- LNG fueling stations for trucks, buses, and vehicles
- Industrial plants requiring continuous LNG supply
- Remote power generation facilities
- LNG import/export terminals and distribution hubs
Technical Specifications
| Feature | Specification |
|---|---|
| Tank Type | LNG Cryogenic Tank / LNG Storage Tank |
| Capacity | 500–10,000 L (small-scale) and large industrial sizes |
| Material (Inner Tank) | 9% Nickel Steel / Stainless Steel |
| Material (Outer Tank) | Carbon Steel / Reinforced Concrete |
| Insulation | Vacuum or Perlite |
| Containment Options | Single, Double, Full Containment |
| Safety Systems | Pressure Relief Valves, Sensors, Monitoring |
| Operating Temperature | −162°C |
| Compliance | NFPA 59A, API 625, ISO 16903 |
Why Choose BluNet LNG Cryogenic Tanks?
- Efficient storage with minimized boil-off gas
- Fully compliant with international LNG standards
- Flexible designs: vertical, horizontal, or skid-mounted
- Durable construction for long-term reliability
- Expert engineering, design, and installation support by BluNet
