Name: ISO tank container exporter,20m3 Cryogenic ISO tank container
Brand: DSW
SKU: CONTAINER
Price: 47 USD
Availability: InStock

ISO Tank CONTAINER

ISO Tank containers are designed to transport or store bulk liquids available in a wide range of capacities.
The liquefied gases are available, containing nitrogen, oxygen, LNG, argon, methane, nitrous oxide, ethylene, carbon dioxide, and hydrogen.
Sizes available as 20′ or 40′ models and built-in BluNet facilities in China.
BluNet ISOs can be engineered to meet all applicable international design codes and even dual-coded on request.

Cryogenic ISO Container Sizes

Model	Gross Volum(m3)	Tare weight(kg)	Max. Gross weight(kg)	Width (mm)	Height(mm)	MAWP (MPa)
ISO-20-8	20.6	8900	34000	2438	2591	0.2 ~3.7
ISO-20-17		11350
ISO-20-24		13800
ISO-40-8	45	12000

1. ISO tank container technical spec

Model：1CC-TCS-20000/16 Insulation type： Multilayer
NO	Items	Inner vessel		Outer vessel
1	Design pressure MPa	1.6		-0.1（outer）
2	Working pressure MPa	1.6		-0.1（outer）
3	MAWP MPa	1.6		/
4	Design temperature ℃	-196		-19～50
5	Working temperature ℃	≥-196		normal
6	Pneumatic test MPa	1.6		HLD
7	G. Vol m³	20.8		5.5(interlayer)
8	E. Vol m³	19.76		/
9	Medium	LOX/LIN/LAR		Multilayer
10	Main material	S30408		Q345R
11	Treatment	Pickling and passivation		Sanding and coating
12	Corrosion allowance mm	0		0
13	Joint efficiency	1		0.85
14	Filling rate	95%		/
15	Static evaporation %/d	≤0.22(by LOX), ≤0.35 (by LIN), ≤0.24 (by LAR),
16	Seal off vacuum degree Pa	≤1×10^–²
17	Leakage of vacuum interspace Pam³/s	≤1×10^–⁶
18	ISO code	22T7
19	Diameter mm	Φ2150	Φ2400
20	External Dimensions mm	6058×2438×2591
21	type	Horizontal
22	Tare weight Kg	~7890
23	Fully loading weight Kg	~15986(LIN), ~27585(LAR), ~22546(LOX)
24	Design service life	15years
25	Open pressure for safety valve	1.89Mpa
26	Sort	Ⅲ
27	Portable tank guideline	T75

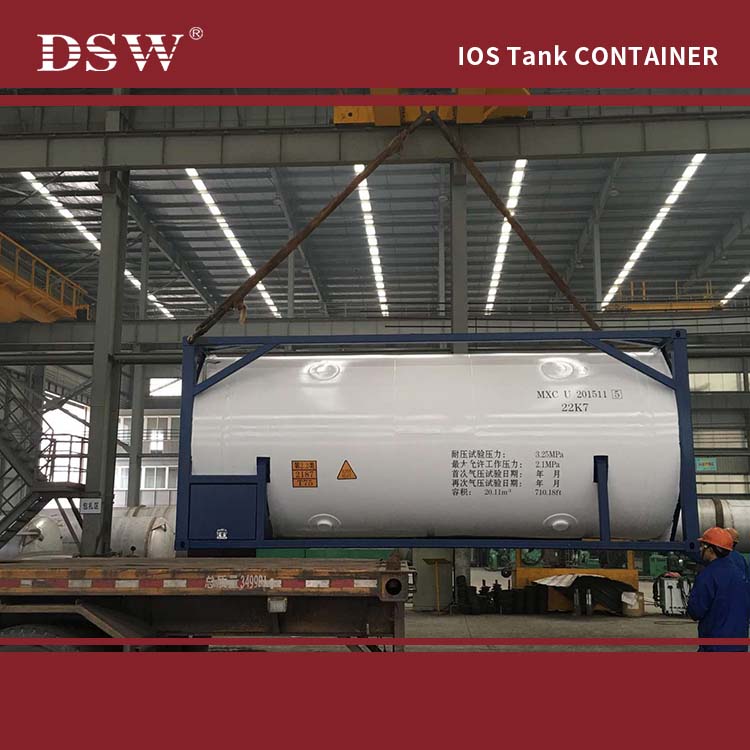

Cryogenic Liquid ISO Tank Container

Model	10ft	20ft	40ft
Working Pressure	8Bar/16Bar /24Bar
Medium	LOX/LIN/LAR/LNG/LCo2
Insulation Type	High Vacuum Multilayer
Standard	GB/ASME

BluNet International also provides the camper with a side extender, light truck chassis, and diesel truck cab application solutions to meet the different needs of users at home and abroad.
