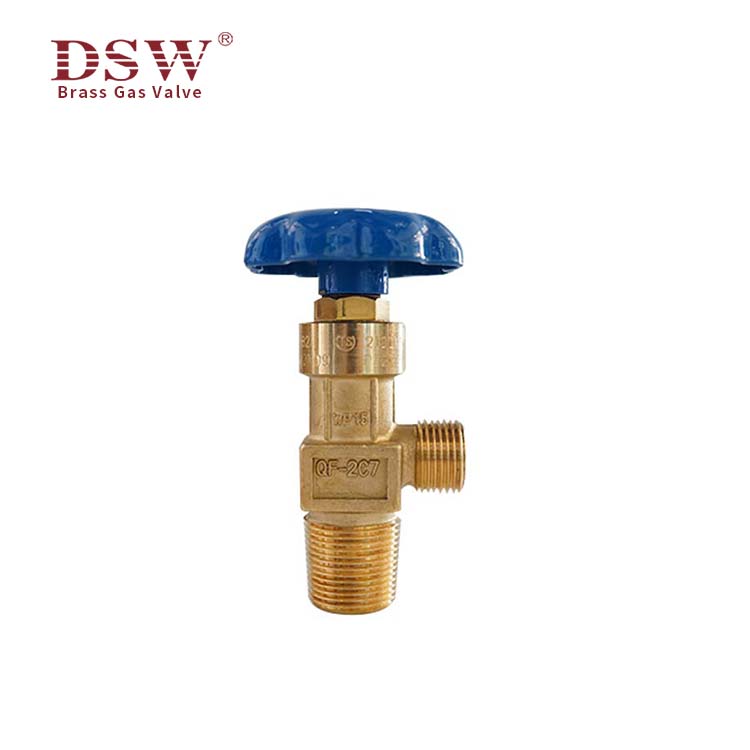

QF2C oxygen cylinder valves
| TYPE | MEDIUM AVAILABLE | WP(Mpa) | INLET THREAD | OUTLET THREAD | SAFETY DEVICE(Mpa) | DN(mm) | STRUCTURAL STYLE |
| QF-2 | O2,N2 | 15 | GB8335 PZ27.8 | G5/8 | 21±1.5 | 4 | Valve type |
| QF-2B | O2,N2 | 15 | GB8335 PZ27.8 | G5/8-LH | 21±1.5 | 4 | Valve type |
| QF-2B1 | O2,N2 | 15 | G1/2 | W22×1/14 | 21±1.5 | 4 | Valve type |
| QF-2C | O2,N2 | 15 | GB8335 PZ27.8 | G5/8 | 21±1.5 | 4 | Valve type |
| QF-2D | O2,N2 | 15 | GB8335 PZ27.8 | Internal thread G5/8 | 21±1.5 | 4 | Valve type |
| QF-2E | O2,N2 | 15 | JIS B 8246 V1 φ20 | W22×1/14 | 4 | Valve type | |
| QF-2F | O2,N2 | 15 | GB8335 PZ27.8 | G5/8 | 21±1.5 | 4 | Valve type |
| QF-2G | O2,N2 | 15 | GB8335 PZ27.8 | G5/8 | 21±1.5 | 4 | Shaft type |
| QF-2M | O2,N2 | 15 | GB8335 PZ27.8 | G1/2 | 21±1.5 | 4 | Valve type |
| QF-2P | O2,N2 | 15 | GB8335 PZ27.8 | G5/8 | 21±1.5 | 4 | Valve type |
| QF-4 | O2,N2 | 15 | GB8335 PZ27.8 | G3/4 | 21±1.5 | 4 | Valve type |
| QF-5 | O2,N2 | 20 | GB8335 PZ27.8 | G5/8 | 28±2 | 4 | Valve type |
| QF-6 | O2,N2 | 15 | GB8335 PZ27.8 | Internal thread G5/8 | 4 | Valve type | |
| QF-7 | O2,N2 | 15 | GB8335 PZ27.8 | Internal thread G5/8 | 4 | Needle form | |
| QF-8 | O2,N2 | 15 | GB8335 PZ27.8 | G1/2 | 4 | Shaft type | |
| QF-12 | O2,N2 | 15 | GB8335 PZ19.2 | G5/8 | 21±1.5 | 4 | Valve type |
| QF-20 | O2,N2 | 15 | GB8335 PZ19.2 | G1/2 | 21±1.5 | 2 | Diaphragm type |
| QF-21 | O2,N2 | 15 | GB8335 PZ19.2 | W21.8×1/14 | 21±1.5 | 2 | Diaphragm type |
| QF-22 | O2,N2 | 15 | GB8335 PZ27.8 | W21.8×1/14 | 21±1.5 | 4 | Valve type |
| QF-25 | O2 | 15 | GB8335 PZ19.2 | φ7 Hose | 2 | Needle form | |
| QF-27 | O2,N2 | 15 | JIS B 8246 V1 | W22×1/14 | 21±1.5 | 3 | Valve type |
| F-1 | O2,N2 | 15 | GB8335 PZ27.8 | Internal thread W23×1/14 | 21±1.5 | 4 | Valve type |
| F-2 | O2,N2 | 15 | JIS B 8246 V2 | Internal thread W23×1/14 | 21±1.5 | 4 | Valve type |
| F-3 | O2,N2 | 15 | BS341 1×1/14 | Internal thread G5/8 | 21±1.5 | 4 | Shaft type |
| DF-4 | O2,N2 | 15 | GB8335 PZ27.8 | G5/8 | 21±1.5 | 4 | Shaft type |

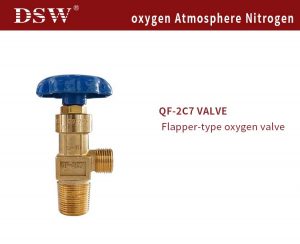

QF2C oxygen cylinder valves
Specifications of medical Oxygen cylinder valves
Pressure Relief Device(PRD) to ensure proper assembly and resist tampering
Ergonomically designed for ease of use and durability
The Series Post Medical Valves, available in wrench or toggle type, have inert PTFE packing for leak-free stem seal, long cycle life and resistance to corrosion
The Oxy-Gen I Series is available in both Check valve & Shut-off valve configurations
The GV-MRI (QF)Series & Oxy-Gen I Series Valves comply with Level 3 Tesla requirements
The high-performance nylon ABS polymer blended shroud of oxygen valves exhibits excellent chemical and UV resistance
Cleaned for oxygen service and oil free as per CGA G-4.1 & ASTM G-93

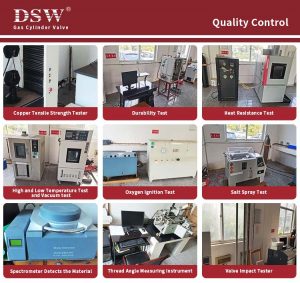

100% helium tested
Reduced friction due to optimized O-ring (GV) or double O-ring (GVHM) seal and smooth operation at exceptionally low torque levels
Compact design and cosmetic appeal
Special construction to reduce magnetic attraction
Valves have critical importance in the medical industry as medical equipment demands quality assurance of its components.
