BluNet provides LNG ISO container and LNG ISO tank solutions engineered for the safe, efficient, and compliant transportation of liquefied natural gas (LNG) across road, rail, and marine logistics networks. Designed in accordance with international ISO standards, our 40 ft LNG ISO container systems deliver superior thermal performance, extended holding times, and low boil-off rates.
Key Advantages
- ISO 1496-3 certified LNG ISO tank container
- 20ft and 40 ft LNG ISO tank available
- Low LNG evaporation loss design
- High vacuum multilayer insulation
- IMDG / ADR / RID approved
- Custom LNG ISO tank capacity available
LNG ISO Container Highlights

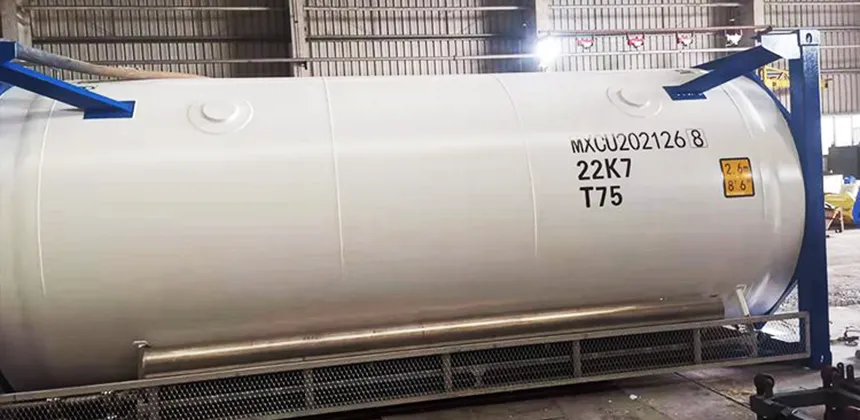

- Container Type: T75 LNG ISO Tank Container for cryogenic LNG transport
- Available Sizes: 20 ft and 40 ft LNG ISO containers suitable for road, rail, and marine logistics
- LNG ISO Tank Capacity: Up to 46,000 liters, customizable for industrial and energy projects
- Design Temperature: -196°C for long-term LNG storage and transport
- Working Pressure: 7–10 bar optimized for safe liquefied natural gas handling
- Holding Time: Up to 60 days, minimizing LNG boil-off and operational losses
- Boil-off Rate: ≤0.25% per day for maximum efficiency in LNG logistics
- Transport Modes: Intermodal transport including road trucks, rail tankers, and marine shipping
- Compliance: ISO 1496-3, IMDG, ADR, RID, CSC, ensuring global regulatory standards
- Customization Options: Tank capacity, pipeline configuration, instrumentation, and insulation tailored for energy, industrial fuel, and remote LNG supply projects
Standard LNG ISO Container Configurations
| Model | Water Volume (m³) | Working Pressure (bar) | Tare Weight (kg) | Max Gross Weight (kg) |
|---|---|---|---|---|
| 40 ft LNG ISO Container | 45.5 (Customizable) | 8.3 | 11,580 | 30,480 |
| 20 ft LNG ISO Tank | 21.13 (Customizable) | 7.5 | 7,160 | 16,090 |
Note: LNG ISO tank specifications can be customized based on project requirements, including pressure rating, pipeline configuration, instrumentation, and insulation performance.
Engineering Features
Our LNG ISO tanks are engineered for safe, efficient, and compliant LNG transport, combining advanced cryogenic design with global ISO standards.
High Vacuum Insulation System
Multilayer vacuum insulation reduces heat transfer, minimizes boil-off, and extends LNG holding time.
Cryogenic Stainless Steel Inner Vessel
Cryogenic-grade stainless steel inner tank ensures durability and compatibility with extreme LNG temperatures.
LNG Transport Safety Valve System
- Pressure relief valves
- Emergency shut-off system
- Liquid level gauges
- Pressure monitoring instruments
- Burst disc protection
ISO Frame Structure
- Compliant with ISO container standards
- Supports intermodal transport (road, rail, marine)
- Stackable and safe for lifting operations
- Compatible with global shipping infrastructure
Optimized Long Holding Time
- Reduces LNG boil-off
- Extends transport duration
- Minimizes LNG losses
- Improves operational efficiency
ASME Tank containers made out of stainless steel, with insulation, as well as a protective layer of aluminum or polyurethane, are used to ship and store hazardous and non-hazardous materials such as liquids, powders, and gasses available in size from 21,000 LITRE to 26,000 LITRE.
whick is the most efficient way to transport liquids, gasses and hazardous materials.
A 20ft cryogenic LNG ISO container provides a storage capacity of 22,000 liters at a working pressure of 17 BARG. Container size (L x W x H/mm): 6058 x 2438 x 2591 Filling capacity: 22,000 liters.
Cryogenic liquids—liquids having a normal boiling point below -130°F at 14.7 psia (-90°C at 101 kPa, abs.)—fall under unique considerations as they are kept in their liquid state at extremely low temperatures.
These liquefied gases possess unique qualities that make them ideal for a medley of applications.
Argon is used in the lighting industry for fitting bulbs, helium keeps satellite instruments cool and fills balloons, nitrogen acts a refrigerant and provides an unreactive atmosphere, and oxygen—the gas that sustains your life—is valued for its reactivity.
ASME Tank containers – Insulated Cargo Tank – BluNet INTERNATIONAL
Applications
Our LNG ISO containers are designed for safe LNG transportation, temporary storage, and intermodal logistics across the global natural gas supply chain. These cryogenic LNG tank containers are widely used in energy, industrial, and transportation sectors requiring reliable liquefied natural gas distribution solutions.
- LNG distribution networks and LNG supply chain logistics
- Natural gas energy infrastructure and LNG import terminals
- Industrial LNG fuel conversion systems and clean energy projects
- LNG fueling stations for heavy trucks and fleet transportation
- Marine LNG bunkering and offshore energy supply
- Peak shaving LNG storage and satellite LNG stations
- Remote power generation and microgrid LNG energy systems
- Cryogenic LNG transport via road, rail, and marine shipping
